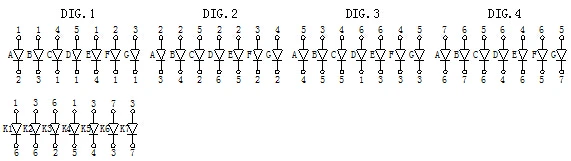

Digit Graphic Letter Display 0.2 Inch 4 Digit Mini 7 Segment
How to Choose 7 segment led display from Kohon? Mini 7 segment led display; Digit height 0.2 inch; Emitting colors red, yellow, blue, orange, white, yellow-green, pure green; Surface colors black, grey, red, white; Connecting by common anode or common cathode; Lens colors white, yellow, red,...
Description
How to Choose 7 segment led display from Kohon?
Mini 7 segment led display;
Digit height 0.2 inch;
Emitting colors red, yellow, blue, orange, white, yellow-green, pure green;
Surface colors black, grey, red, white;
Connecting by common anode or common cathode;
Lens colors white, yellow, red, green, transparent or water clear;
Pin diameter ∅0.45mm, 0.51mm, 0.6mm...
Pin length from 7.6mm to 38mm, generally 10.28mm, straight and bent type
Electrical and optical characteristics as following:
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Luminous Intensity | Iv | 70 | 80 | mcd | IF=20mA | |
| Peak Wavelength | λP | nm | IF=20mA | |||
| Dominant Wavelength | λd | 620 | 630 | nm | IF=20mA | |
| Forward Voltage | VF | 1.8 | 2.0 | 2.5 | V | IF=20mA |
| Reverse Current | IR | 50 | µA | VR=5V | ||
| Forward Current | IF | 3 | 5-10 | 15 | mA |
Wave Soldering temperature 260 ℃ in 3 seconds
Operating temperature -20 to +85 ℃
Storage temperature -20 to +85 ℃
Storage Humidity 45% to 85% RH
The 0.2-inch 4-bit mini 7-segment LED display FND is a stylish way to display numbers and letters. The product is ideal for a variety of applications such as electronic clocks, timers and temperature displays. Its compact and durable design makes it an excellent choice for a wide range of devices, from small household appliances to large industrial machines.
The display has four numbers, each consisting of seven segments. Bright and clear LED lights make it easy to read numbers and letters from a distance, even in low light conditions. The display also has a built-in multiplexing controller that ensures the numbers are displayed at the correct intervals.
The FND is easy to install and features a simple plug and play design. It is available in a variety of colors, including red, green and yellow. It is also available in both public anode and public cathode configurations, making it compatible with a wide range of electronic devices.
FND is a highly reliable and long-lasting product with a service life of up to 50,000 hours. The display is also energy efficient, which means it can be used in devices that require low power consumption, such as battery-powered devices.
Overall, the 0.2-inch 4-bit Mini 7-segment LED display FND is a versatile and reliable display option for a wide range of applications. Its sleek and stylish design, combined with its high level of functionality and ease of installation, makes it the first choice for developers and engineers who want a reliable and efficient display solution.
