Description
Product Description

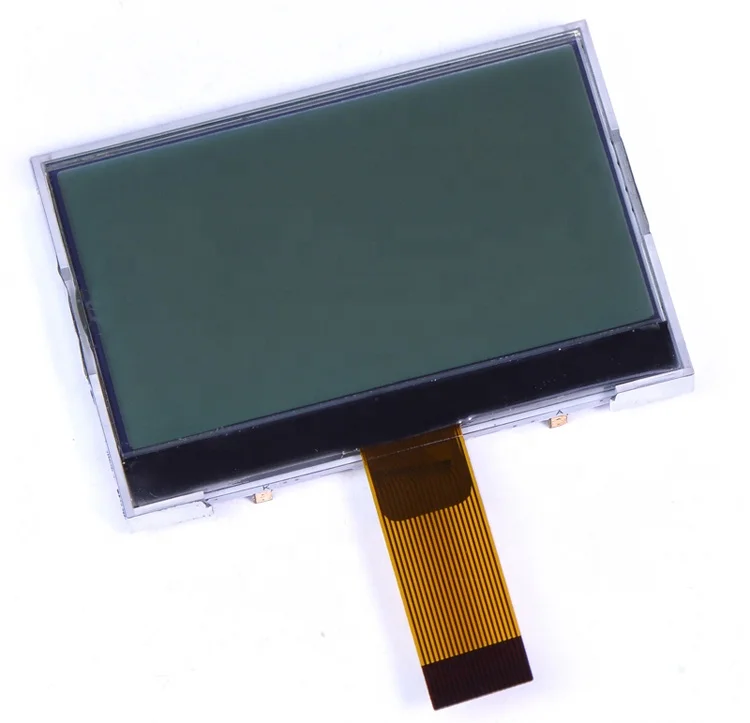

| Item | Contents | Unit |
| Lcd type | factory lcd | - |
| Interface | serial/parallel, 20pin | - |
| Resolution | 128*64 | - |
| Display mode | FSTN,blue words over white background | - |
| Driver IC | ST7565R | - |
| Outline dimension | 59.0(W)X41.0 (H)X5.0(T)mm | mm |
| Viewing area | 54.00(W)X 31.00(H)mm | mm |
| Active area | 47.33(W)X 26.21(H)mm | mm |
| Operating temperature | -10C- +60C | C |
| Storage temperature | -20C-+70C | C |
| Backlight | 3 led light white | - |
Hot Tags: 128x64 fstn graphic lcd display for handheld device suppliers China, manufacturers, factory, wholesale, high-quality, newest, price
