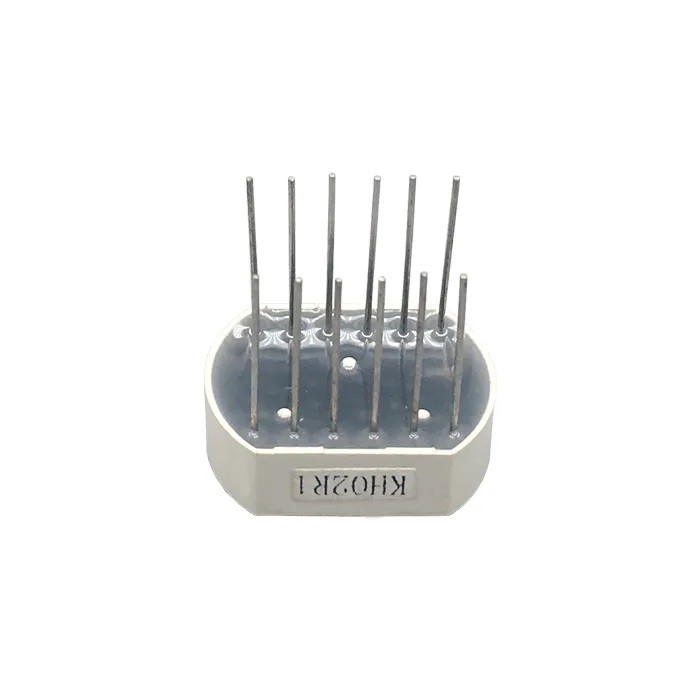

0.2 Inch Mini 7 Segment Led Display Module
1.Features:Connecting Form: Usual anode,Lighting Color:Red 2.Electrical Optical Charactertistics (Ta = 25℃): 3.Absolute Maximum Ratings (Ta=25℃): 4.Suggested Way OF Usage: When using LED, It′s circuit adopts constant current,With DC current about 5~10mA,Not more than 20mA at maximum 5.Package...
Description
1.Features:Connecting Form:Usual anode,Lighting Color:Red
2.Electrical Optical Charactertistics (Ta = 25℃):
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Luminous Intensity | IV | 50 | 70 | mcd | IF=20mA | |
| Peak Wavelength | lp | nm | IF=20mA | |||
| Dominant Wavelength | ld | 630 | 645 | nm | IF=20mA | |
| Forward Voltage | Vf | 1.8 | 2.0 | 2.4 | V | IF=20mA |
| Reverse Current | IR | 50 | uA | VR=5V | ||
| Suggestion Forward Current | IF | 3 | 5-10 | 20 | mA |
3.Absolute Maximum Ratings (Ta=25℃):
| Parameter | Rating |
Unit |
| Reverse Voltage | 5 | V |
| Power Dissipation,Per Dice | 50 | mW/chip |
| Operating Temperature Ranger | -20~+85 | ℃ |
| Storage Humidity | 45%~85% | RH |
| Storage Temperature Ranger | -20~+85 | ℃ |
| Soldering Temperature | 260℃ For 3 Seconds | 260℃ For 3 Seconds |
| Peak IF(ma) (1/10Duty Cycle 0.1ms Pulse Width) | 80 | mA/chip |
| Continuous Forward Current | 20 | mA/chip |
4.Suggested Way OF Usage:
When using LED, It′s circuit adopts constant current,With DC current about 5~10mA,Not more than 20mA at maximum
5.Package Dimension(dimensions:inch):
