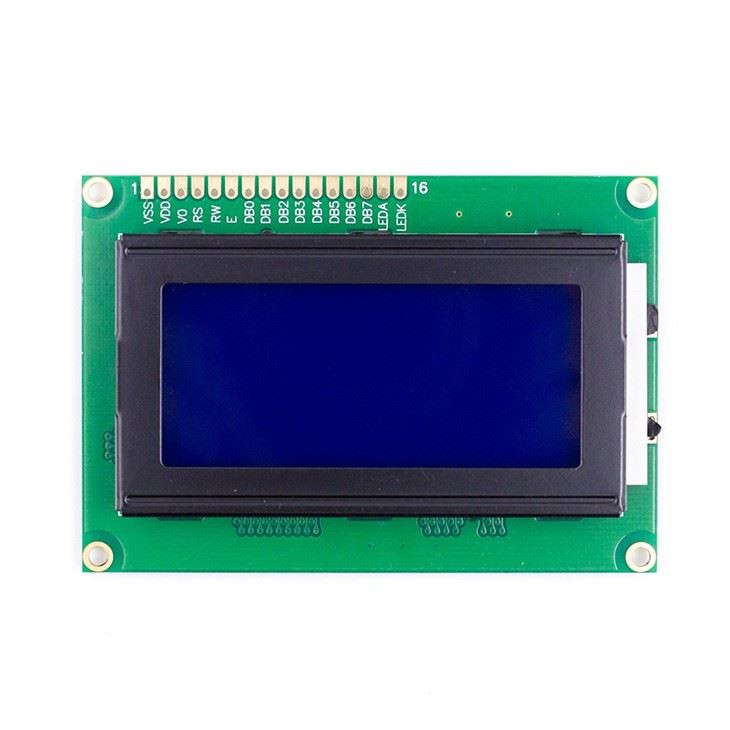

Backlight Module LCM LCD Display Module

Backlight Module LCM LCD Display Module Quick Details

Type:integrated circuit

Place of Origin:Guangdong, China

Brand Name:Risenta

D/C:2020

Package:Carton

SHIPPING WAY:DHL FEDEX UPS EMS TNT

 Introduction

This module is a 16 character by 2 line LCD display with Blue background and White backlight. The original 1602 LCD needs 7 IO ports to be up and running, ours is built with Arduino IIC/I2C interface, saving you 5 IO ports.   This LCD is ready-to-use because it is compatible with the Arduino Liquid Crystal Library.

Specification

I2C Address:0x27

Back lit (Blue with white char color)

Supply voltage: 5V

Interface:I2C/TWI x1,Gadgeteer interface x2

Adjustable contrast

Size:82x35x18 mm

Connection diagram

I602 is equipped with 4 pins in total. SCL should be connected to analog 5, SDA to analog 4, VCC to +5V and GND to ground.

Backlight Module LCM LCD Display Module
